C.B. RADIO EQUIPMENT


SHENGDA

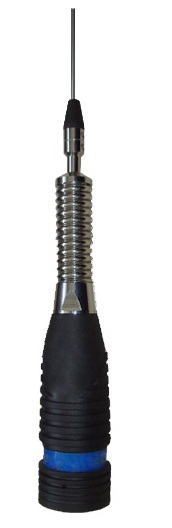

ML-145

FREQUENCY RANGE 26 TO 28 MHz
IMPEDANCE 50 OHMS
GAIN 4.0dBi
POLARIZATION VERTICAL
RADIATION OMNI
VSWR < 1.5:1
MAXIMUM INPUT POWER 150W
CONNECTOR PL259
HEIGHT 1600 MM
SUITABLE MOUNT MOST SO-239 STYLE
WEIGHT 0,4 KG
LIGHTNING PROTECTION DIRECT GROUND

click on image for technical leaflet

Suitable for use with any mount that is "SO-239" style.

R495,00 IN STOCK

CAN BE USED WITH ANY OF OUR MAG MOUNT BASES OR BOOTLIP MOUNT

CHECK THEM OUT ON OUR "HAM" MOBILE ANTENNA PAGE


COMET HF10

click on image for technical leaflet

IF YOU ARE TECHNICALLY COMPETENT AND ARE WANTING MORE MOBILE PERFORMANCE,

THEN THIS QUALITY, JAPANESE 28 MHz AMATEUR BAND ANTENNA MAY SUIT YOUR APPLICATION.

YOU WILL NEED TO OWN AND KNOW HOW TO USE AN SWR METER TO "STRETCH" THE RESONANCE DOWN TO 27MHz.

CAN BE USED WITH ANY OF THE SO-239 STYLE MOUNTS, BOOTLIP OR MAG MOUNT. ALMOST 1M IN LENGTH.

R795,00  IN STOCK


SHENGDA

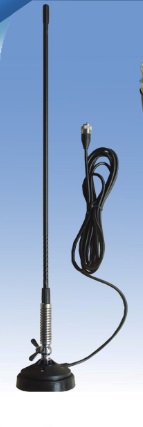

SD-T3-27MAG  CB MAGNETIC MOUNT MOBILE ANTENNA

95mm magnet base with 4m of RG58, terminated with a PL-259 connector.

The included low profile helically wound antenna can handle 150W (SSB) maximum input power.

Being approximately 75cm in height, it is generally suitable for boot or roof mount applications.

R595,00 IN STOCK


SHENGDA END-FED HALF WAVE BASE STATION ANTENNA

THIS CITIZENS BAND BASE STATION ANTENNA IS MADE FROM ALIMINIUM ALLOY

AND STANDS 5.4M TALL. RATED AT MAXIMUM 200W (SSB) INPUT POWER,

IT CAN CLAMP TO A MAST OF 40-50MM DIAMETER.

RATED PERFORMANCE IS 3,5DBi

R1095,00  IN STOCK

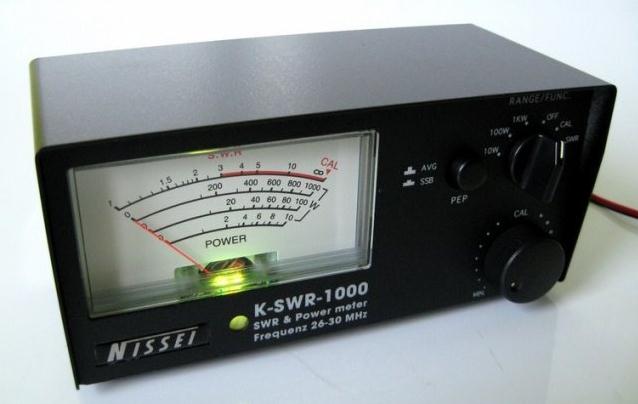

NISSEI K-SWR-1000 SWR/POWER METER

NO STOCK
