ANTENNAS
PORTABLE ANTENNAS
Ideal accessory to your Baofeng UV-5R hand held
| FREQUENCY RANGE | 144/430 MHz |
| NOMINAL GAIN | 2.15dBi |
| BANDWIDTH VSWR | <1.5:1 |
| RADIATION PATTERN | OMNI-DIRECTIONAL |
| POLARIZATION | VERTICAL |
| RATED POWER | 50 WATTS MAX |
| IMPEDANCE | 50 OHMS |
| CLOSE/OPEN HEIGHT | 110MM/410MM |
| CONNECTOR | SMA FEMALE |
R150,00 IN STOCK
MOBILE ANTENNAS

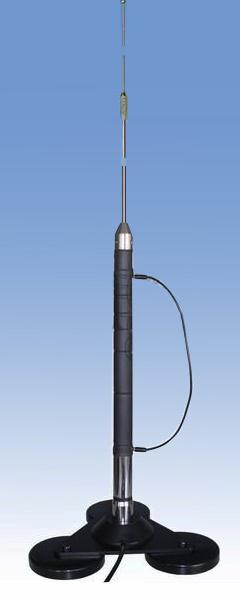

HF-1 EIGHT BAND MOBILE H.F. + 6M ANTENNA
The HF-1 covers 7/10/14/18/21/27/29 AND 50MHz amateur bands
Measuring in at just on 1,3m and weighing just 300g and fits on any suitable SO-239 mount.
R995,00 STILL TO BE RE-ORDERED FROM FACTORY
Add a rugged triple-mag mount, as depicted above and pay just
R1890,00 STILL TO BE RE-ORDERED FROM FACTORY
SD390 3 MAGNET MOUNT ONLY
R995,00 NO STOCK
HR-28
| FREQUENCY RANGE | 28 MHz (10m band) |
| MOBILE BASE TYPE REQ'D | UHF |
| BANDWIDTH | GOOD - GROUNDING REQ'D. |
| RADIATION PATTERN | OMNI-DIRECTIONAL |
| POLARIZATION | VERTICAL |
| RATED POWER | 200 WATTS (SSB) MAX |
| IMPEDANCE | 50 OHMS |
| LENGTH | 2I3 CM |
| FOLD-OVER | YES |
R1195,00 IN STOCK

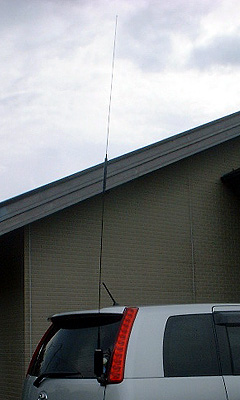

HA750BL
BROAD-BAND HF/6M MOBILE ANTENNA
CLICK ON IMAGE ABOVE FOR INSTRUCTION SHEET
Covers 7MHz plus 14MHz ~ 56MHz for tx/rx. For rx only, from 3MHz through 70MHz.
Length is approx 2,14m and the antenna weighs in at around 820g
Rated at 120W SSB and fits on a standard M or SO239 style mount (not included). Ideally installed as depicted above.
R4195,00 SOLD OUT STILL TO BE RE-ORDERED FROM FACTORY
COMET UHV-10 9 BAND BALCONY/PORTABLE ANTENNA
The Comet UHV-10 is Comet's latest model HF "fixed" antenna
and covers 3.5/7/10/1418/21/24/28/50 MHz!
The ideal compact "balcony" antenna - getting you on HF under otherwise impossible circumstances.
PERFORMANCE:
GAIN: HF: 1.0dBi + 50 MHz: 2.15dBi
VSWR: 1.5:1 or less 50 Ohms
MAX POWER: <30 MHz: 120W SSB (J3E) 50 MHz 200W SSB (J3E)
LENGTH: 198cm (max) approx.
R4995,00 NO STOCK

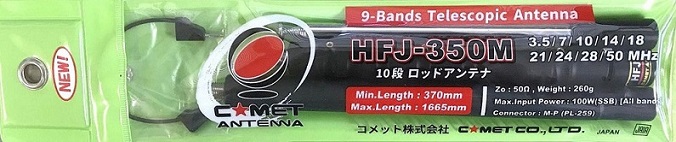

HFJ-350M "TOY BOX"
10 BAND TELESCOPIC PORTABLE HF ANTENNA SYSTEM
160/80/40/30/20/17/15/12/10/6M/2M
NB: "TOY BOX" VERSION INCLUDES A RESONATOR COIL FOR 160M !!
PLUS HFJ-2M FOR 2M....
click image for sales leaflet
R2720,00 IN STOCK

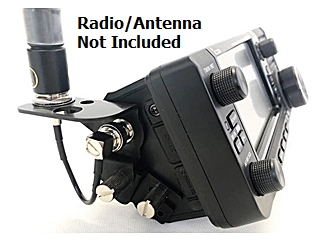

CST-30 MOUNT FOR HFJ-350M "TOY BOX" ANTENNA
FOR ICOM IC-705 & YAESU FT-817ND & YAESU FT-818ND
R495,00 IN STOCK

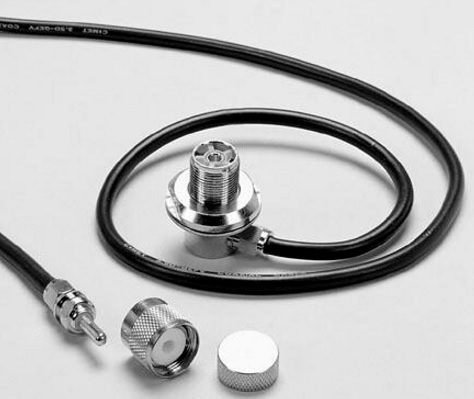

3D4MB & 3D6MB STANDARD MOBILE LIP-MOUNT CABLE ASSEMBLY
3D4MB R550,00 in stock + 3D6MB R695,00 no stock

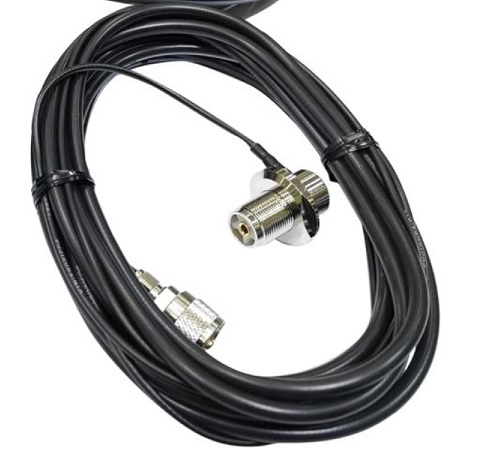

3K154M & 3K155M STANDARD MOBILE LIP-MOUNT CABLE ASSEMBLY
This is a special cable that is easy to pull in, is used on the antenna side.
A removeable plug is used for the MP type connector, on the radio side.
The cable is made from low-loss Fujikura coax.
The 3K154M is 1,5m on the MJ side and 2,5m on the MP side R550,00 in stock
The 3K155M is 1,5m on the MJ side and 3,5m on the MP side R600,00 in stock
SIRIO MAGNETIC MOUNT
This is a 120mm diameter magnetic mount with SO-239 type base.
Supplied with 4m coax cable, terminated by PL-259 connector.
R395,00 IN STOCK
SHENGDA SD-170 MAGNETIC MOUNT
This is a 175mm diameter magnetic mount with SO-239 type base.
Supplied with 4m coax cable, terminated by PL-259 connector.
R450,00 IN STOCK
CA-2x4SR DUAL-BAND MOBILE ANTENNA
The Comet CA-2x4SR mobile VHF/UHF vertical antenna has been designed to cover more than just the 2m & 70cm amateur band frequency allocations.
(Amateur/LMR/FRS frequency ranges)
| FREQUENCY RANGE | DUAL BAND |
| MOBILE BASE TYPE REQ'D | UHF |
| BANDWIDTH | BROADBAND |
| RADIATION PATTERN | OMNI-DIRECTIONAL |
| POLARIZATION | VERTICAL |
| RATED POWER | 150 WATTS MAX |
| IMPEDANCE | 50 OHMS |
| CLOSE/OPEN HEIGHT | 102 CM |
| FOLD-OVER | YES |
R950,00 NO STOCK

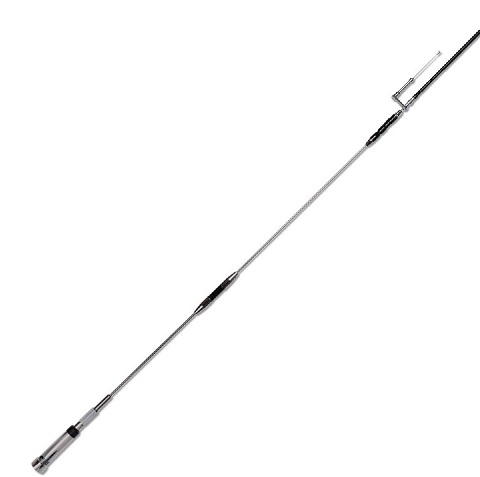

UHV-4 QUAD-BAND MOBILE ANTENNA
This antenna combines 10m/6m/2m/70cm and features their fold-over hinge for the convenience of entering garages, car-ports, etc.
Gain on 28/50/145 MHz = 2,15dBi 440 MHz = 5,5dBi
| FREQUENCY RANGE | 10m, 6m, 2m, 70cm |
| MOBILE BASE TYPE REQ'D | UHF |
| BANDWIDTH | NARROWER THAN SINGLE BAND |
| RADIATION PATTERN | OMNI-DIRECTIONAL |
| POLARIZATION | VERTICAL |
| RATED POWER | BAND DEPENDENT |
| IMPEDANCE | 50 OHMS |
| HEIGHT | 137 CM |
| FOLD-OVER | YES |
R1995,00 IN STOCK

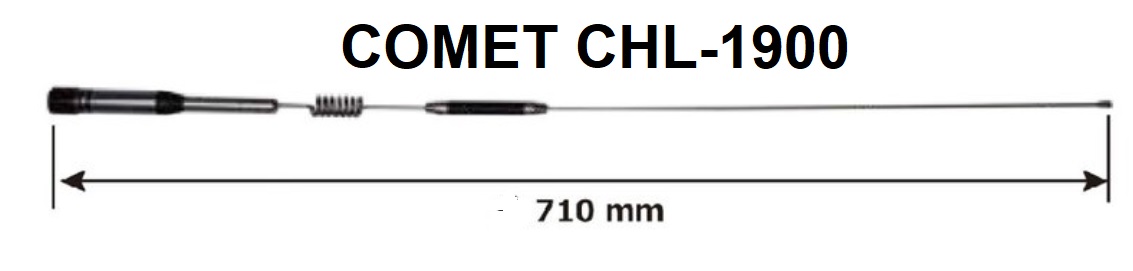

CHL-1900 DUAL-BAND MOBILE ANTENNA
This antenna is ideal for 2m/70cm mobile applications that call for good looks and compact size.
Standing just 71cm, the CHL-1900 has 2,15dBi gain on 2m and 5.0dBi on 70cm.
Maximum input power is 70W (FM). Weight is 145g and being Comet, you are assured of robust construction.
The antenna has a tilt-over feature and is designed to screw on to any SO-239 type base.
R795,00 NO STOCK

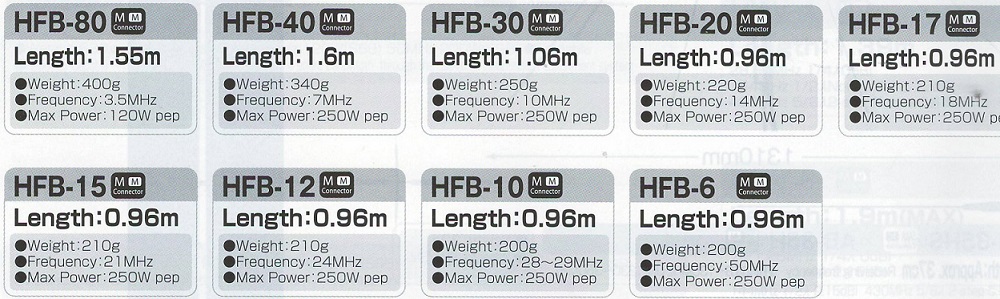

HFB SERIES HF MONO BAND ANTENNAS
THE SET COMPRISES THE FOLLOWING RESONATORS: HFB-80, HFB-40, HFB-30, HFB-20, HFB-17, HFB-15, HFB-12, HFB-10
THEY ARE THE STANDARD PL STYLE AND ARE RATED UP TO 250W SSB
COMET HFB SERIES HF MOBILE ANTENNAS
High quality mono-band base loaded whips designed to give good performance on their respective bands
NB: HFB-6 NOW ALSO INCLUDED IN THE FULL PACK
NB: HFB-40 IS SOLD OUT
FULL "PACK" OF RESONATORS R8995,00
INDIVIDUAL RESONATORS R1095,00

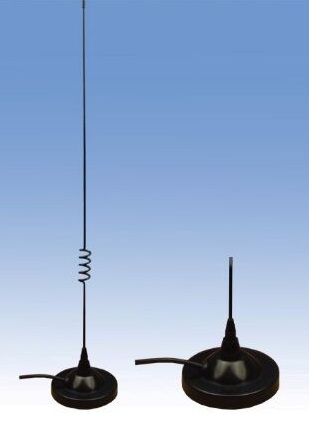

SD90VU 144/430 MHz DUAL BAND MINI MAG MOBILE ANTENNA
90mm magnetic base with a screw-on removeable whip. Coax cable is terminated with a PL259 plug.
Great way to get your HT's signal "out of the car"
| FREQUENCY RANGE | 144/430 MHz |
| NOMINAL GAIN | 3.5/4.5dBi |
| BANDWIDTH VSWR | <1.5:1 |
| RADIATION PATTERN | OMNI-DIRECTIONAL |
| POLARIZATION | VERTICAL |
| RATED POWER | 50 WATTS MAX |
| IMPEDANCE | 50 OHMS |
| COAXIAL CABLE | 4m RG58 |
| RADIATOR LENGTH | 490MM |
R595,00 IN STOCK
CHL-25S DUAL-BAND ANTENNA
| FREQUENCY RANGE | 2M & 70CM |
| NOMINAL GAIN | 2.15dBi/5.5 dBi |
| BANDWIDTH VSWR | LESS THAN 1.5 |
| RADIATION PATTERN | OMNI-DIRECTIONAL |
| POLARIZATION | VERTICAL |
| RATED POWER | 200W (INTERMITTENT TX) MAX |
| IMPEDANCE | 50 OHMS |
| ANTENNA LENGTH | 980MM |
| TERMINATION | PL259 (FITS TO SO-239 BASE) |
R750,00
NO STOCK
COAXIAL PLUGS AND ADAPTORS CURRENTLY EX-STOCK
| PL259 (CRIMP) FOR RG58 | SOLD OUT |
| PL259 (CRIMP) FOR RG213 | R35,00 |
| PL258 BARRELL (SO239/SO239) | SOLD OUT |
| BARRELL (PL259/PL259) | R50,00 |
| N TO SO239 ADAPTOR | SOLD OUT |
| SMA MALE/SO239 ADAPTOR | R50,00 |
| SMA FEMALE/SO239 ADAPTOR | R50,00 |
| BNC MALE/SO239 ADAPTOR | R75,00 |
| SO-239 CHASSIS MOUNT | SOLD OUT |
| PL259/SO239 90 DEG ADAPTOR | R100,00 |
| MP-5YP PL259 HIGH SPEC | R69,00 |
| MP-5 PL259 (DETACHABLE) | R109,00 |
SD-CR8900S QUAD BAND MOBILE ANTENNA
| MOBILE ANTENNA BAND | FREQUENCY COVERAGE RANGE | VERTICAL ANTENNA GAIN | ELEMENT PHASING (WAVELENGTH) |
| 10M | 28.0 - 29.7 MHz | 2,1 dBI | 1/4 |
| 6M | 50 - 54 MHz | 2,1 dBI | 1/4 |
| 2M | 144 - 148 MHz | 2,1 dBi | 1/2 |
| 70CM | 440 - 450 MHz | 5,5 dBi | 2 x 58 |
The CR-8900S is a 4 band mobile antenna, designed 29 MHz (FM), 50 MHz (FM), 144 MHz and 430 MHz bands.
Not recommended for use with
magnetic mounts. SWR bandwidth dependant on ground mount location.
Base fitting is the popular PL259 type, and the length
of the antenna is 1.27m.
Also fitted with a handy tilt/fold over base to prevent any accidental damage.
Power rating is 60W , weight is 490g.
R795,00 NO STOCK
SPRING COAXIAL CABLE SET
(HEAVY DUTY, THROUGH-HOLE MOUNT WITH 6M HIGH QUALITY COAXIAL CABLE AND DETACHABLE PL-259 CONNECTOR)
R995,00 NO STOCK
SD-770H DUAL-BAND MOBILE ANTENNA
| FREQUENCY RANGE | 145/430 MHz |
| NOMINAL GAIN | 3.0/5.5dBi |
| BANDWIDTH VSWR | 1.5:1 OR BETTER |
| RADIATION PATTERN | OMNI-DIRECTIONAL |
| LENGTH | 990MM |
| RATED POWER | 50 WATTS MAX |
| IMPEDANCE | 50 OHMS |
| WEIGHT | 204G |
| FITTING TYPE | PL259 |
R325,00 STILL TO BE RE-ORDERED FROM FACTORY
Comet CST-20Plus2 Universal Pole Mount
This is a multi-use antenna mounting bracket which includes both a screw and a U bolt.
The bracket has various mounting holes and can be affixed to any mast with diameters between 12mm and 32mm.
It could also be used as a wall mount. Manufactured from aluminium and stainless steel.
Length: 43mm x 73mm. Width: 60mm. Weight: 125g.
R395,00
may vary slightly from above photo
AV-400B "connectorless" Mobile Boot Mount
R150,00
K-33 ROOF SIDE MOUNT
R195,00
SD-KYD LIP MOUNT
R295,00

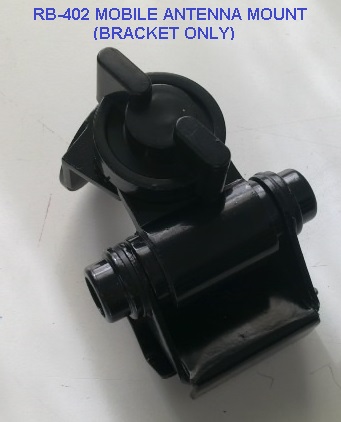

NAGOYA RB-402 GUTTER MOUNT BRACKET
Adjustable on two axis and has 15mm aperture for SO-239 (or other) type socket
R295,00 IN STOCK
may vary slightly from illustration

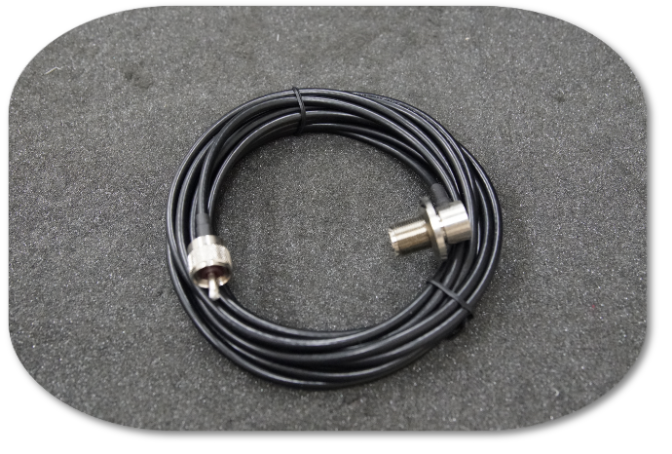

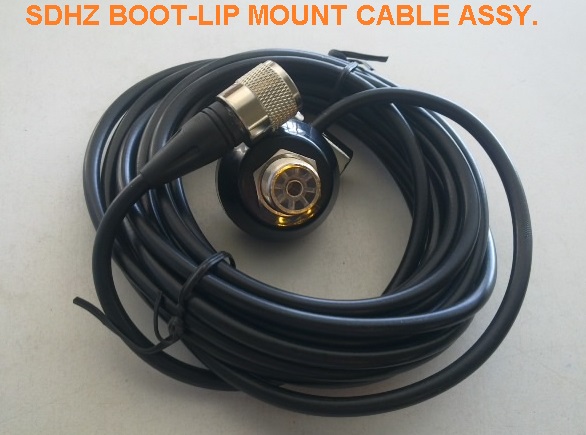

Suitable for use with above antenna mounts, this 4m lead is terminated at one end
with a PL-259 connector and at the other, a compact boot-lip mount SO-239 socket.
R350,00 IN STOCK
RG-58A/U 5M CABLE ASSEMBLY
Suitable for use with above antenna mounts, this 5m lead is terminated at one end
with a PL-259 connector and at the other, an SO-239 socket.
R225,00 SOLD OUT STILL TO BE RE-ORDERED FROM FACTORY
