ANTENNAS

MEASUREMENT DEVICES

SWR/POWER METERS

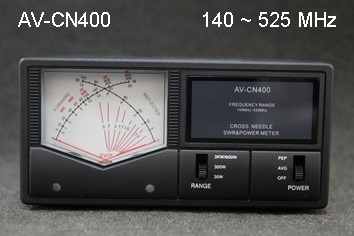

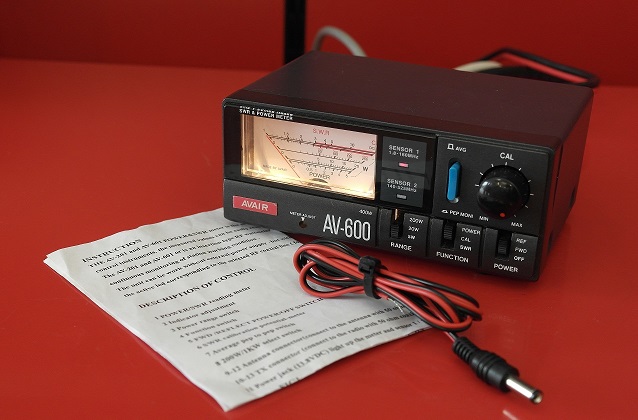

AV-CN400 140 - 525 MHz R1595,00   IN STOCK    AV-600 1,8 - 160 + 140 -525 MHz R1995,00  NO STOCK CMX-200 1,8 - 200 MHz R2750,00  IN STOCK

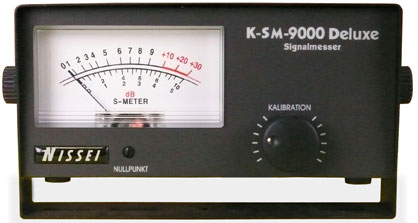

AV-CN200 1,8 - 160 MHz R1595,00  NO STOCK KS-SM-9000   S-METER R475,00      NO STOCK CMX-400 140 - 525 MHz R2895,00  IN STOCK
AV-20 1,8 - 200 MHz R1150,00   IN STOCK  AV-40 144 - 470 MHz R1150,00    SIN STOCK AV-1000 1,8 - 160 MHz &  430 - 1300 MHz
Rxxxx     SOLD OUT


A recent addition to my SWR/Power meter range - from Comet, the CMX-200 covers from 1.8Mhz up to 200Mhz, and has 3 range settings 30/300/3Kw, and needs just about 6 watts minimum power for SWR measurement. PEP reading feature, and the meter has a very smart cross needle design, easy to read display, and supplied with 12v lead for meter illumination.

COMET CAA-500 mk2 ANTENNA ANALYZER

Designed and manufactured in Japan, so the quality is a given!

Frequency Range: 1,8 MHz to 500 MHz

click the pic above to download the manual

FREQUENCY RANGE 1,8 MHz ~ 500 MHz
SWR MEASUREMENT RANGE ANALOGUE: 1.0~6.0   LCD: 1.0~9.9
IMPEDANCE RANGE 12.5 ~ 300 OHMS
RESISTANCE RANGE 10 ~ 500 OHMS
REACTANCE RANGE 0 ~ 500 OHMS
RF CONNECTORS HF/VHF: SO239  UHF: N TYPE
POWER SOURCE 6 X AA (ALKALINE) OR NI-MH CELLS (NOT INCLUDED)
DIMENSIONS 89 X 196 X 70 (mm)
OWEIGHT APPROX 800G

R8995,00

IN STOCK



MANUAL ANTENNA TUNERS

CAT-10 USER MANUAL            CAT-300 USER MANUAL

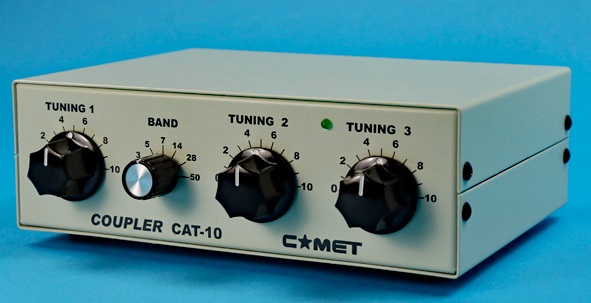

The Comet CAT-10 is the ideal companion to the Yaesu FT817ND or any other QRP rig running 10W or less!

ANTENNA TUNERS BACK IN STOCK LATE NOVEMBER/EARLY DECEMBER 2018

FREQUENCY COVERAGE 3,5 to 50 MHz (in 7 bands)
MAXIMUM POWER 10 Watts
IMPEDANCE 50 to 600 Ohms

R2995,00
 IN STOCK

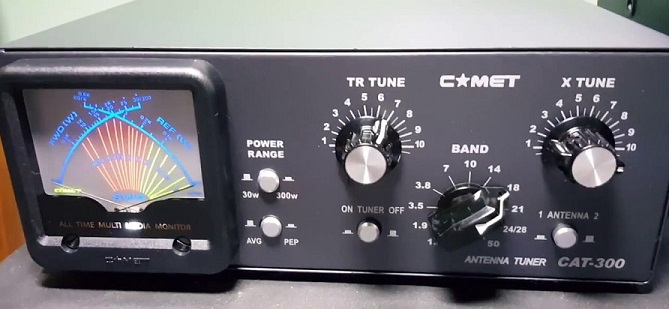

The Comet CAT-300 cross-needle antenna tuner is rated for up to 300 Watts, boasts two antenna inputs, and covers HF and 6m!

FREQUENCY COVERAGE 1,8 to 60 MHz
MAXIMUM POWER 300 Watts (SSB)
ANTENNAS 2 coaxial inputs
IMPEDANCE 10 to 600 Ohms
INPUT CONNECTOR SO-239
METER SWR/POWER
POWER RANGES 30 Watts/300 Watts Average/PEP
METER TYPE Cross-needle, illuminated
SIZE 250mm x 93mm x 200mm
WEIGHT 2,7Kg

R5225,00
 LOW STOCK

N7DDC ATU-100

This semi-automatic antenna tuner contains a set of 7 capacitors and 7 inductors, which allows it (with the largest configuration)

to work effectively over a wide frequency range of 1.8 - 30 MHz

Standard SO-239 input/outputs PLUS "banana-sockets" to facilitate long-wire antennas!

VOLTAGE RANGE 10 ~ 15V DC
MAXIMUM CURRENT CONSUMPTION 400 mA*
MAXIMUM WORKING THROUGHPUT 100 W
MAXIMUM POSSIBLE MEASURED POWER 150 W
MINIMUM TUNING POWER 5W
MINIMUM POSSIBLE MEASURED POWER 100 mW (O.1W)
ACCURACY OF POWER MEASUREMENT 10 %
MAXIMUM INSTALLED INDUCTANCE 1869 pF
SIZE 160mm x 90mm x 40mm
WEIGHT 430g

R1995,00
 SOLD OUT STILL TO BE RE-ORDERED FROM FACTORY

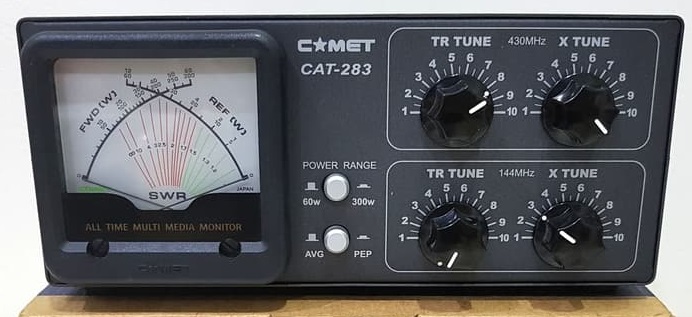

The Comet CAT-283 cross-needle antenna tuner is rated for up to 200 Watts FM, and covers 2m and 70cm.

It has a single antenna input and output connector, making it ideal for use with dual band antennas.



FREQUENCY COVERAGE 144 - 146 MHz & 430 - 440 MHz
MAXIMUM POWER 200 Watts (FM)
ANTENNAS single coaxial input
IMPEDANCE 15 to 200 Ohms
INPUT CONNECTOR M-type SO-239
METER SWR/POWER
POWER RANGES 60 Watts/300 Watts
METER TYPE Cross-needle, illuminated
SIZE 218mm x 93mm x 120mm
WEIGHT 1,4Kg

R3395,00

NO STOCK
