ANTENNAS
COAXIAL SWITCHES, DUPLEXERS, BALUNS AND DUMMY-LOADS
COMET
CP-45 ALUMINIUM PORTABLE MASTThis is a collapsible, 4 section telescopic mast which can be extended to 4,5m
and collapses down to a very manageable 1,36m. It friction-locks with nylon compression bushings.
Weighing in at under 2 Kg, the CP-45 can handle a load of up to 10Kg. It has a guy bracket and comes supplied with
almost 15m of guy line.
| MAXIMUM LENGTH | 4.5M |
| MINIMUM LENGTH | 1.36M |
| PIPE DIAMETER | 26 ~ 34mm |
| WEIGHT | 1.38Kg |
NO STOCK
RE-ORDERING IN MARCH 2026
ALSO CHECK OUT THE
COMET CP-60L
Light-weight, collapsible 5 segment 6m aluminium mast
| MAXIMUM LENGTH | 6M |
| MINIMUM LENGTH | 1.5M |
| PIPE DIAMETER | 26 ~ 42mm |
| WEIGHT | 2.4Kg |
NO STOCK
RE-ORDERING IN MARCH 2026
AND IF THAT'S NOT TALL ENOUGH -ALSO CHECK OUT THE
COMET CP-80L
Light-weight, collapsible 6 segment 8m aluminium mast
| MAXIMUM LENGTH | 8.05M |
| MINIMUM LENGTH | 1.72M |
| PIPE DIAMETER | 22 ~ 42mm |
| WEIGHT | 3.0Kg |
NO STOCK
POSSIBLY RE-ORDERING IN MARCH 2026
AV-22D DUPLEXER
| IMPEDANCE | 50 OHMS |
| ISOLATION | > 60 dB |
| MAX POWER (1.6 ~ 30 MHz) | 1 KW (PEP) |
| MAX POWER (50 ~ 150 MHz) | 400 W (PEP) |
| MAX POWER (400 ~ 460 MHz) | 240 W (PEP) |
R950,00
IN STOCK
CF-706
LOW LOSS, HIGH ISOLATION DUPLEXER
IDEAL ACCESSORY FOR USING YOUR FT-857D AND ATAS-120 ANTENNA FOR HF/VHF/UHF
R1295,00 LOW STOCK
AV-38D TRIPLEXER
1,6 ~ 160MHz 380 ~ 550MHz 850 ~ 1300MHz
NO STOCK

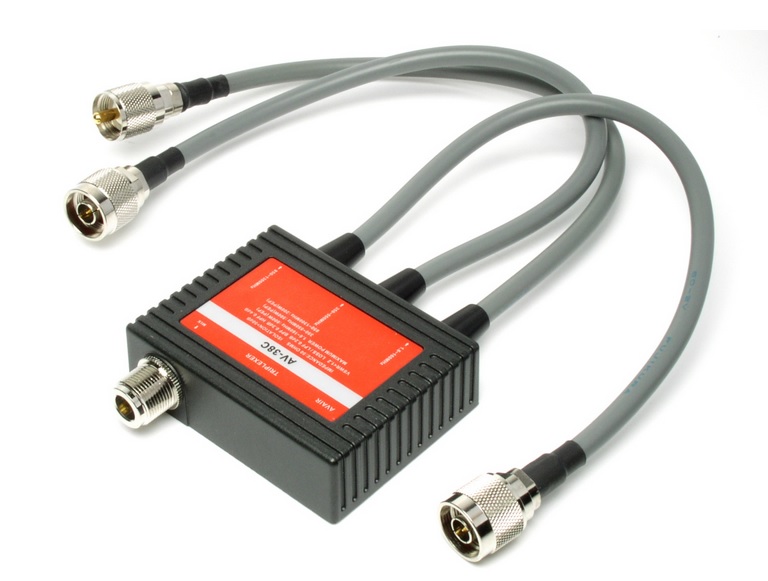

AV-38C TRIPLEXER
1,6 ~ 160MHz 380 ~ 550MHz 850 ~ 1300MHz
R1550,00
IN STOCK
COMET
CSW-100 2 WAY COAXIAL SWITCHThe CSW-100 is a high quality, double contact two-way coaxial switch designed for switching RF signals.
Rated from DC to 500MHz, the switch exhibits a very low insertion loss in the order of 0,20 dB.
Power rating: 1500 W PEP. (DC ~ 30 MHz) + 1000 W PEP (30 ~ 170 MHz)
All connectors are SO-239 and have a quality gold finish.
R1095,00
LOW STOCK
AV-SW2M 2 WAY COAXIAL SWITCH
R850,00
IN STOCK

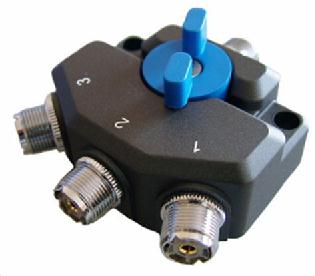

AV-SW3M 3 WAY COAXIAL SWITCH
| FREQUENCY RANGE | DC ~ 800MHz |
| POWER RANGE | Frequency Dependant: 1,5KW: DC ~
30MHz 1,0KW: 30 ~ 200MHz, 500W: 200MHz ~ 500MHz, 250W: 500MHz ~ 1GHz |
| INSERTION LOSS | Frequency Dependant: DC ~ 500MHz: >=0.05dB 500MHz ~ 1GHz: >=0.10dB |
| OUTPUT PORT 1/2 ISOLATION | Frequency Dependant: DC ~ 500MHz: <=70dB 500MHz ~ 1GHz: 60dB |
| VSWR | Frequency Dependant: DC ~ 500MHz: >=1.15 500MHz ~ 1GHz: >=1.25 |
R1250,00
IN STOCK
AV-SW4M 4 WAY COAXIAL SWITCH
R1650,00
IN STOCK

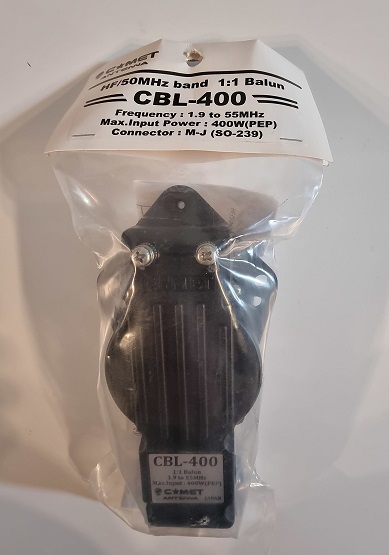

CBL-400 HF BALUN
The CBL-400 is a 1 to 1 balun, rated at up to 400W (PEP) with an HF frequency range of 1,9MHz to 55MHz. The coaxial socket is the familiar SO-239.
R850,00 IN STOCK
The CBL-1000 is a 1 to 1 balun, rated at up to1000W (PEP) with an HF frequency range of 1,9MHz to 55MHz. The coaxial socket is the familiar SO-239.
R975,00 IN STOCK
CBL-2500 HF/6M BALUN
The CBL-2500 is a high power 1 to 1 balun, rated at up to 2,5KW (PEP) with a frequency range of 1,8MHz to 56 MHz. The coaxial socket is the familiar SO-239.
R1095,00 IN STOCK
CF-30S LOW PASS FILTER
The CF-30S will assist in solving problems with BCI, TVI, etc. and is ideal for any 100W HF transceiver.
| IMPEDANCE | 50 OHMS |
| CUT-OFF FREQUENCY | 32 MHz |
| INSERTION LOSS | LESS THAN 0.4dB |
| VSWR | LESS THAN 1.2 |
| MAXIMUM POWER | 150 WATTS |
| DIMENSIONS | 56 x 140 x 33 mm |
| CONNECTORS | SO-239 (ACCEPTS PL259) |
NO STOCK
DL-200M 200W DUMMY LOAD
| FREQUENCY RANGE | DC ~1.0GHz |
| POWER RATING | Peak: 200W (5s ON/60s OFF) Continuous: 35W |
| VSWR | >=1.16 at full range |
R1150,00
IN STOCK
