POWER SUPPLIES
SWITCH-MODE POWER SUPPLIES
Designed with radio communications in mind...
| AV-3035NF | 30A constant, 35A surge with metering + noise offset | R2395.00 | NO STOCK |
| AV-6055NF | 55A constant, 60A surge with metering + noise offset | R4095.00 | IN STOCK |

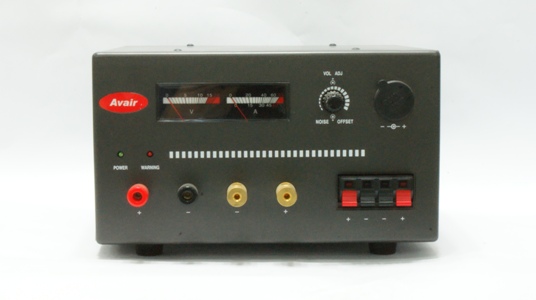

| AV-6075NF | 4 - 16VDC + noise offset, max 60A cont, 75A peak | R4595.00 | IN STOCK |
| POW-111B | 20A constant, 30A surge with digital metering + noise offset | R1650.00 | IN STOCK |
IN STOCK!
The POW-111B switching power supply provides 13.8 VDC at 20A continuous, 30A surge. Output voltage may be either fixed at 13.8 VDC or adjustable from 9 to 15 VDC.
Red and black (30A) terminals are on the rear panel. There are also low amperage "tip jacks" on the front panel.
The LCD panel meter displays voltage and current simultaneously.
A Noise Off-Set control is also provided to eliminate pulse noise from the power supply. Ripple is under 100mV p-p at load.
