ANTENNAS
BASE STATION ANTENNAS
click above picture to download instruction manual
COMET
CHV-5α alpha ROTATABLE 5 BAND DIPOLECompact, lightweight and easily assembled in either horizontal "V" or groundplane configuration,
each band tunes independantly of the others. Comet have designed this antenna
for those requiring a multi-band dipole that can, if needed, be rotated - but don't have much space in which to install it.
| Bands Covered | 7, 14 or 18, 21, 28, 50 MHz (5 bands) |
| Max power | 7,14 or 18 MHz 150W SSB, 21, 28, 50 MHz 220W SSB |
| Impedance | 50 Ohm |
| Horizontal length | approx 4m |
| Weight | approx 2,8Kg |
| Impedance | 50Ω |
| Mast Dia | 30 ~ 62mm (round pipe) 25 ~ 60mm (square pipe) |
| Feedline Connection | SO-239 |
R7450,00
CWA-1000 HF 5-BAND TRAP DIPOLE
This is a quality trapped dipole, covering the 80m, 40m,20m,15m, and 10m amateur bands
Great performance on the non-WARC bands is assured, from 80m to 10m, and, with a tuner, you'll cover maximum bandwidth with ease.
Whether you are chasing the DX, or ragchewing on 80m, this antenna will do a fine job.The length of the dipole is a very compact 19.9m,
and will handle legal limit power output with ease. The CWA1000 is now supplied with the latest balun.
| Maximum Input Power | 500 Watts (PEP) |
| VSWR | Less than 1,2 : 1 |
| Overall Length | 19.9 m |
| Includes all fittings | as well as CBL-1000 Balun, & Insulators |
| Weight | 2.4Kg |
R3250,00
CWA-1000 instruction sheet here W8010 version here (recommended)

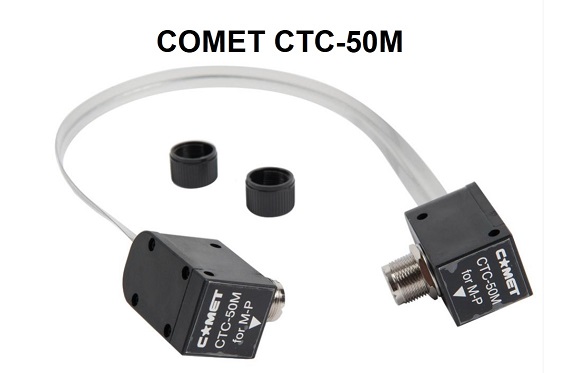

WINDOW FEED-THROUGH JUMPER CABLE. DC ~ 1300 MHz.
| Max. Power: DC ~ 50 MHz | 100 Watts (PEP) |
| Max. Power: 144 MHz | 60W (F3E) |
| Max. Power: 430 MHz | 40W (F3E) |
| Max. Power: 1200 MHz | 10W (F3E) |
| Cable Length: | 40cm |
R895,00
CWD230 T2FD ANTENNA SET
R3795,00

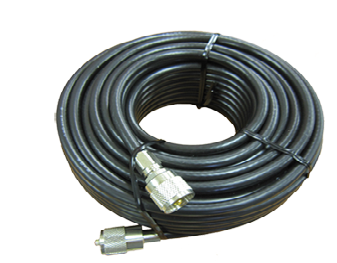

5D2V 25M PRE-MADE COAXIAL CABLE ASSY.
Quality, pre-made coaxial cable with PL259 plugs on either end (one side connector can be "disassembled" to ease routing.
Attenuation per 25m length: 2.0dB @ 100 MHz, 4.5dB @ 400 MHz. Made in Japan.
R1150,00

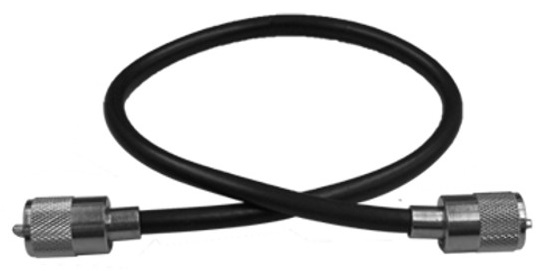

MM-50 CONNECTION CABLE
PL259 to PL259 with 50cm 5D2V coaxial cable
R175,00
| RG-58 MIL SPEC/100M | R1325.00 NO STOCK |
| RG-213CU MIL SPEC/100M | R3550.00 NO STOCK |
| RG-58 MIL SPEC/25M | R395.00 NO STOCK |
| RG-213CU MIL SPEC/25M | R1100.00 IN STOCK |
QRM ELIMINATOR
BATTLING WITH LOCAL ELECTRICAL NOISE ON H.F.?
THIS DEVICE MAY WELL PUT THE ENJOYMENT BACK INTO YOUR HF OPERATING.
R1395,00
The CHA-250B is a broadband vertical with NO GROUND RADIALS.
This antenna is dead easy to assemble, requires no tuning or adjustments and VSWR is under 1.6:1 from 3.5MHz - 57MHz!
If you have the space to erect a full-size antenna, then go-for-it, however if you have space limitations, etc. this could well be the antenna for you!
CHECK HERE FOR A TECHNICAL EXPLANATION OF THIS ANTENNA
| Broadband | TX 3.5 -
57MHz |
Length | 7,13m |
| RX | 2.0 - 90MHz | Weight | 3,2Kg |
| VSWR | 1.6:1 or less |
Connector | SO-239 |
| Max Power | 250W SSB |
Mast Size Required | 30mm – 72mm
diameter |
| Impedance | 50 Ohm |
Max Wind Speed | 107Km/h |
R7995,00
H-422
THIS IS AN H.F. 4 BAND "V" TYPE DIPOLE WITH A SMALL RADIUS OF ROTATION.
HIGH RADIATION EFFICIENCY AND LOW SWR ACHIEVED.
SWITCHING BETWEEN HORIZONTAL AND "V" CONFIGURATION IS EASY!
FINE TUNING THE 7MHz BANDCAN BE ACCOMPLISHED BY SIMPLY EXTENDING OR RETRACTING THE ELEMENT.
LENGTH: (HORIZONTAL CONFIGURATION) = 10.3M LENGTH: ("V" CONFIGURATION) = 7.4M
INCLUDED IS A COMET CBL-2500 BALUN
WEIGHT IS 5.4KG WIND-LOAD AREA IS 0.28M2 MAXIMUM POWER IS 1000W (SSB)
R7325.00
COMET
CA-52HB2 2 ELEMENT 6M YAGIThis is a high-gain 2 element beam antenna of quality construction.
Aluminium and stainless steel hardware ensures a long operational life, while it's low weight of just under 1Kg
makes it ideal for portable operation, too.
| ANTENNA TYPE | 2 Element beam |
| FREQUENCY | 50 MHz (6m) band |
| IMPEDANCE | 50 Ohms |
| V.S.W.R. | Less than 1.5:1 |
| GAIN | 6.3dB |
| FRONT TO BACK RATIO | Over 24dB |
| CONNECTOR | M-type (SO-239) |
| TURNING RADIUS | 1,54m |
| MAXIMUM POWER | 200 Watts |
| MAST DIAMETER | 25mm - 65mm |
| WEIGHT | 910g |
| DIMENSIONS | 800 x 2970 |
R1925,00
COMET CA-52HB4 4 ELEMENT 6M YAGI
The CA-52HB4 is a high gain, twin driven-element beam antenna of quality Japanese design and construction.
Aluminium and stainless steel hardware ensures a long operational life, while it's low weight of just on 2,1Kg
makes it ideal for portable operation, too.
| ANTENNA TYPE | 4 Element beam |
| FREQUENCY | 50 MHz (6m) band |
| IMPEDANCE | 50 Ohms |
| V.S.W.R. | Less than 1.5:1 |
| GAIN | 10.4dB |
| FRONT TO BACK RATIO | Over 19dB |
| CONNECTOR | M-type (SO-239) |
| BOOM | 3.2m |
| TURNING RADIUS | 2.2m |
| MAXIMUM POWER | 400 Watts SSB |
| MAST DIAMETER | 25mm - 65mm |
| WEIGHT | 2.1Kg |
| SIZE | 3250mm X 2970mm |
R2995,00 IN STOCK
COMET CYA-2375 144/430 MHz DUAL BAND YAGI
| DualBand: | 2m/70cm |
| Gain: | 2m 7.6dBi/70cm 9.5dBi |
| VSWR: | 1.5:1 or less |
| Max Power: | 100 watts FM |
| Boom Length: | 0,86m |
| Weight: | 1,0Kg |
R2295,00
| DualBand: | 2m/70cm |
| Gain: | 2m 9.5dBi/70cm 11.15dBi |
| VSWR: | 1.5:1 or less |
| Max Power: | 100 watts FM |
| Boom Length: | 1130mm |
| Weight: | 1,2Kg |
| Connector: | N Female |
| Rated Wind Velocity: | 60 m/s |
R1095.00
COMET CYA-25711 144/430 MHz DUAL BAND YAGI
| DualBand: | 2m/70cm |
| Gain: | 2m 10.8dBi/70cm 12.0dBi |
| VSWR: | 1.5:1 or less |
| Max Power: | 100 watts FM |
| Boom Length: | 1,9m |
| Weight: | 2,0Kg |

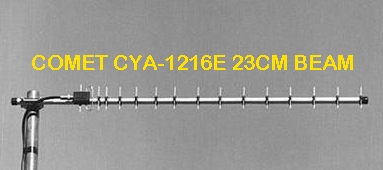

COMET CYA-1216E 23CM YAGI
| Band: | 23cm - 1240 ~ 1300 MHz, 16 el. |
| Gain: | 16.6 dBi |
| VSWR: | 1.5:1 or less |
| Max Power: | 100 watts FM |
| Boom Length: | 1,575m |
| Weight: | 1,5Kg |

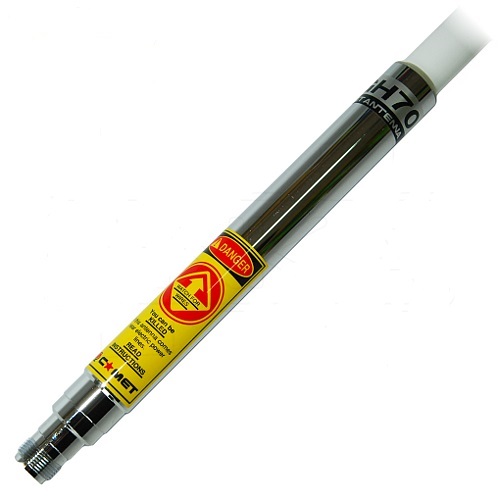

COMET GH-70
2M + 70CM BASE STATION ANTENNA
NON-RADIAL GP FOR BASE OR MARINE USE IN SALT-AFFECTED AREAS
| DualBand: | 2m/70cm |
| Gain: | 2m 4.5dBi/70cm 7.2dBi |
| VSWR: | 1.5:1 or less |
| Max Power: | 200 watts SSB |
| Length: | 2,25m |
| Weight: | 1.15Kg |
| Mounting Mast Dia: | 30mm – 62mm |
| Connector: | SO-239 |
| Construction: | Heavy-duty fibre-glass |
R2295,00 IN STOCK
X200-VU
VHF/UHF BASE STATION ANTENNA
| DualBand: | 2m/70cm |
| Gain: | 2m 6.0dBi/70cm 8.0dBi |
| VSWR: | 1.5:1 or less |
| Max Power: | 200 watts |
| Length: | 2,5m approx. |
| Weight: | 1,4Kg |
| Mounting Mast Dia: | 30mm – 62mm |
| Connector: | SO-239 |
| Construction: | Heavy-duty fibre-glass (split radiator) |
R1295,00 IN STOCK
X50-VU
COMPACT VHF/UHF BASE STATION ANTENNA
| DualBand: | 2m/70cm |
| Gain: | 2m 4.5dBi/70cm 7.2dBi |
| VSWR: | 1.5:1 or less |
| Max Power: | 200 watts |
| Length: | 1,7m approx. |
| Weight: | 0,9Kg |
| Mounting Mast Dia: | 30mm – 62mm |
| Connector: | SO-239 |
| Construction: | Heavy-duty fibre-glass |
R995,00 IN STOCK
COMET GP-15M
6M + 2M + 70 CM BASE STATION ANTENNA
| Tri-Band: | 6m/2m/70cm |
| Gain: | 6m 3.0dBi/2m 6.2dBi/70cm 8.6dBi |
| VSWR: | 1.5:1 or less |
| Max Power: | 300W SSB |
| Length: | 2,42m |
| Weight: | 1.2Kg |
| Rx coverage: | 100 ~ 170, 350 ~ 470MHz |
| Connector: | M-type |
| Construction: | Heavy-duty fibre-glass |
R2295,00 SOLD OUT

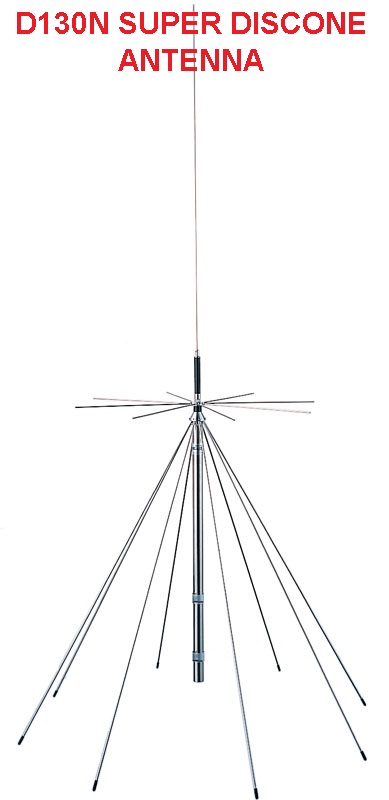

The D130 Super Discone antenna is an ultra-wideband antenna, covering amateur radio,
commercial 2 way, air traffic control and business band frequencies.
Ultra-wideband design: 25 MHz to 1,3 GHz for receive. 50 MHz to 1,3 GHz for transmit.
Compact, lightweight design makes it ideal for antenna to be installed on a balcony railing.
Ideal for 2m, 70cm and 23cm amateur band.
Power rating: 6m = 50W PEP, 2m = 200W max
R1495,00 IN STOCK
COMET DS150S DISCONE
Supplied complete with 20m RG58A/U
R2195,00 NO STOCK
COMET GP-93N
The Comet GP-93N is a triple band base station antenna for 144/4301200 MHz
| Tri-Band: | 2m/70cm/23cm |
| Gain: | 2m 4.5dBi/70cm 7.2dBi/23cm 10.0dBi |
| VSWR: | 1.5:1 or less |
| Max Power: | 300W SSB @ 2m, 200W SSB @ 70/23cm |
| Length: | 1,7m |
| Weight: | 1.15Kg |
| Rx coverage: | 100 ~ 170, 350 ~ 470, 840 ~ 1400MHz |
| Connector: | N-type |
| Construction: | Heavy-duty fibre-glass |
SOLD OUT
PLEASE NOTE:
SHENGDA VX-5000VU VERSION IS AVAILABLE
R1495,00 IN STOCK
